雙層接觸式加熱機指的是有上下2層加熱區的接觸式加熱設備，每層加熱板壓住被加熱物料加熱，具有節能、效率高、升溫快、溫度均勻、應用范圍廣的顯著特點。

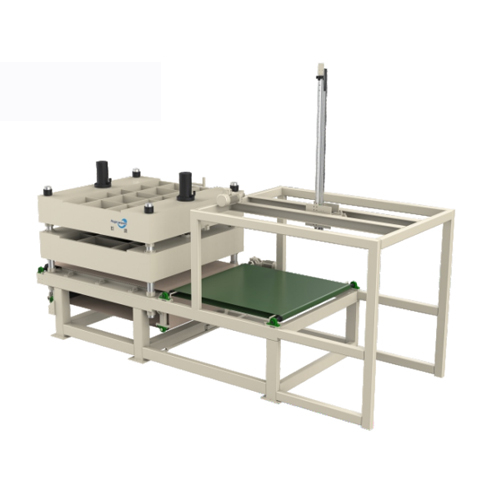

Double-layer contact heater refers to a contact heating device with upper and lower heating zones. Each layer of heating plates presses against the material being heated, characterized by energy saving, high efficiency, fast warming, uniform temperature, and a wide range of applications.
雙層接觸式加熱機指的是有上下2層加熱區的接觸式加熱設備，每層加熱板壓住被加熱物料加熱，具有節能、效率高、升溫快、溫度均勻、應用范圍廣的顯著特點。
Double-layer contact heater refers to a contact heating device with upper and lower heating zones. Each layer of heating plates presses against the material being heated, characterized by energy saving, high efficiency, fast warming, uniform temperature, and a wide range of applications.
選配：1.桁架上料機械手；2.框架機械手；3.板料復合機；4.機器人自動上下料；5.伸縮送料機；6.自動上下料機
Optional: 1. Truss feeding manipulator; 2. Frame feeding manipulator; 3.Sheet laminating machine; 4.Automatic loading and unloading by robot; 5.Telescopic feeder;6.Automatic up and down feeding machine
序號 S/N | 型號Model | 控溫點數量Number of Temperature control point | 加熱方式Heating method | 最高設定溫度℃ Max. Temperature ℃ | 最大加熱材料（L*W） Max. Heated Material (L*W) | 傳輸速度 Transmission speed
mm/s | 公稱力 Nominal force KN | 行程 Stroke mm | 溫度均勻度 Temperature uniformity | 溫度波動度 Temperature fluctuation |
1 | HW-TM-21720FC | 16 | 油加熱 Oil heating | 300 | 1700*2000 | 1-800 | 200 | 500 | ±2% | ±1℃ |
3 | HW-TM-21827FC | 16 | 300 | 1800*2700 | 1-800 | 400 | 500 | ±2% | ±1℃ | |
5 | HW-TM-22130FC | 16 | 300 | 2100*3000 | 1-800 | 400 | 500 | ±2% | ±1℃ | |
7 | HW-TM-23030FC | 16 | 300 | 3000*3000 | 1-800 | 600 | 500 | ±2% | ±1℃ |
